XCMG XGA3250D2WC Chinese 40 ton new mining dump truck for sale
Payment
Shipping
Support Sea freight · Land freight · Air freight
Recommendation
Specs & Compare
Add models to compare
Description

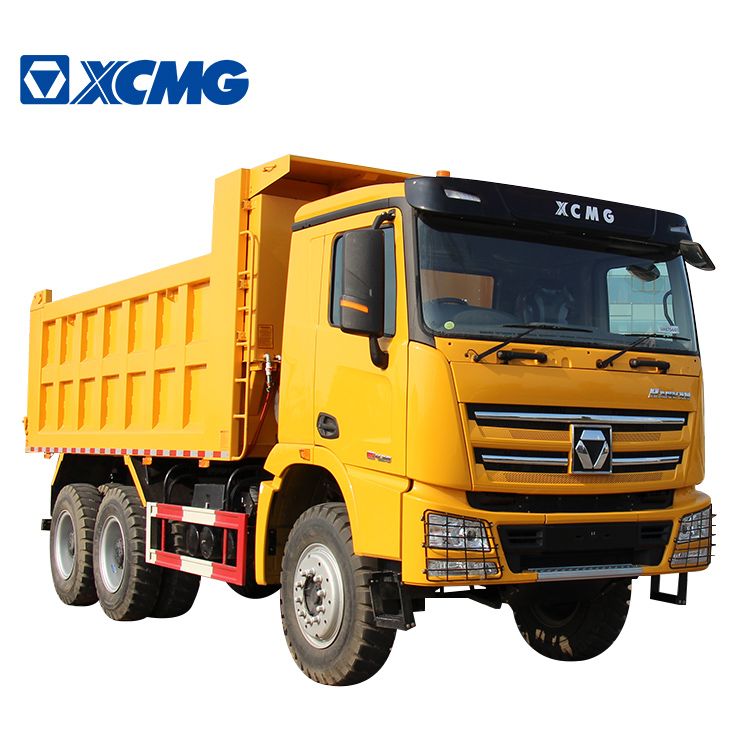

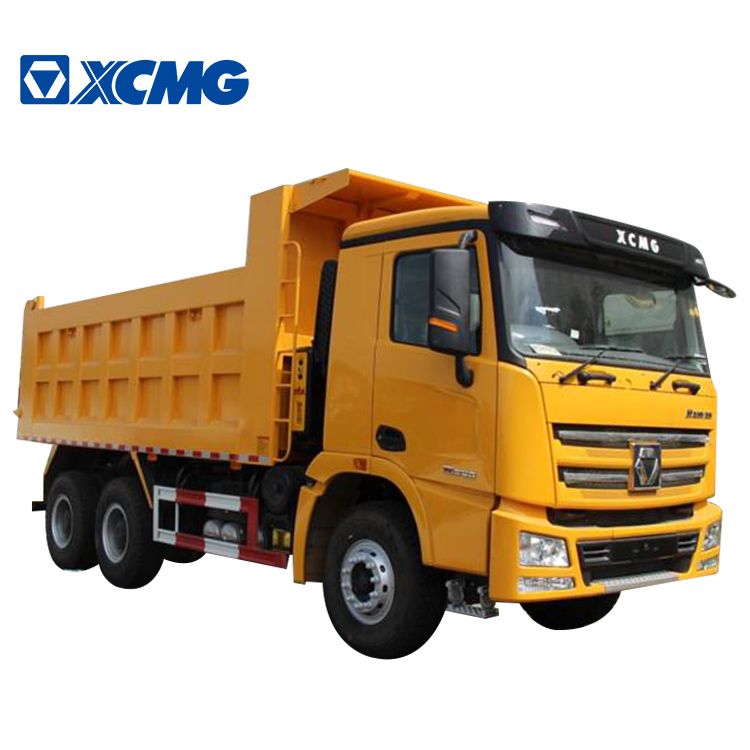

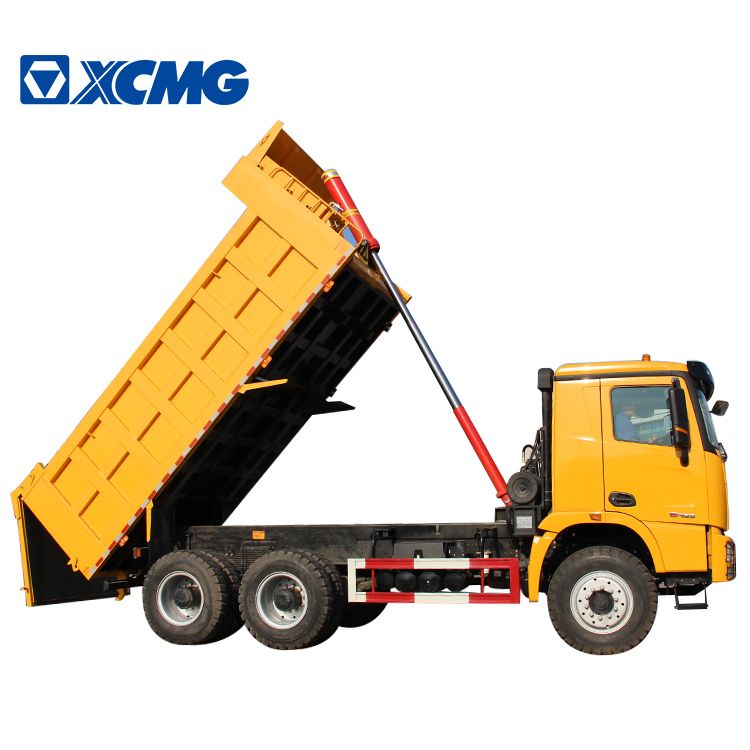

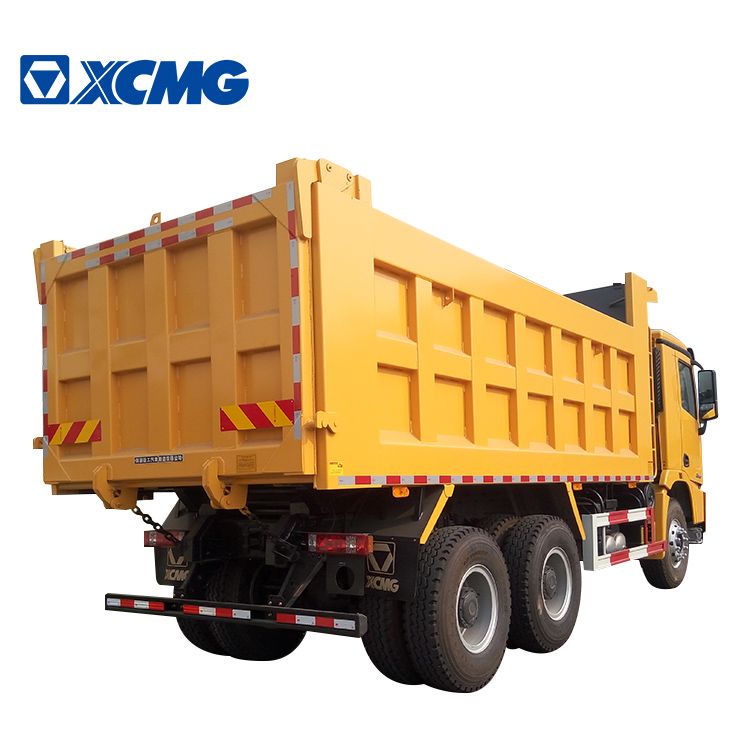

XCMG XGA3250D2WC Chinese 40 ton new mining dump truck.



Qilong T-series dump truck is designed for sand, stone, ore, ore powder, iron powder, construction slag and other different loads.



Advantages and Highlights:

*Comfortable Driving, Pleasant Enjoyment

1. Symmetrical, refined, excellent and ergonomic design, facilitates your driving operation; covering fttings adopt leather package, strong light absorption, no high-light points, reduce visual fatigue.



2. Multi-functional configuration, large storage space; strictly control the gap and chromatism, meticulous work; silkstocking airbag seats.



*Maximum Supporting capacity and practicability

1.Golden power assembly-For the economic and reliabilit, reliable brands engine, Fast gearbox, Steyr axles are adopted for our manufacturing. The range of power output are from 280hp to 420hp to achieve multi-working-condition.



2. Modular designed chassis, neat arrangement highly universalizable. Meanwhile, the reliability and convenience of maintenance have been improved.



3. HANVAN is the industry leader of Chinese heavy- -duty truck market, we provide standard model, composite model, heavy model, super -duty model for your personal needs.



4. The key part have been optimized by CAE and passed relative quality test, the reliability of vehicle can be guaranteed.



Dimensions(mm)
Overall size (length×width×height)
8638×2500×3307
Cargobody size (length×width×height)
5800×2300×1300
Wheelbase
3800+1400
Wheel tread (Front/Rear)
2060/1860
Min. ground clearance
281mm
Weight(kg)
Kerb mass
15620kg
Gross vehicle weight
55620kg
Rated loading capacity
40000kg
Performance
Max. travel speed
79km/h
Min. turning diameter
17m
Max. gradeability(%)
20%
Approach angle
23°
Departure angle
25°
Engine
Brand
SINOTRUK engine
WD615.47, water-cooling, turbocharging and intercooling, Euro emission standard, direct injection diesel
Rated output at 2,200rpm
HP(371kw)
Max. torque at 1400r/pm
1460N.m
Transmission
Brand
FAST
Type
9JSD150A
Wheels rim& Tyres
Rims
8.50V-20
Tyres
12.00R20
Electric System
Negative grounded
Operating voltage
24V
Alternator
70A/28V
Batteries
6-QAW-165
Fuel tank
Capacity
400L
