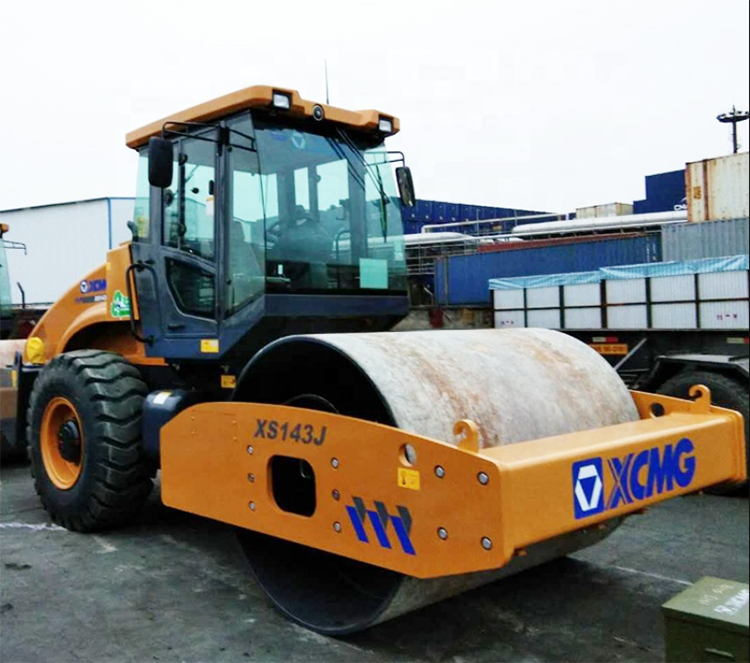

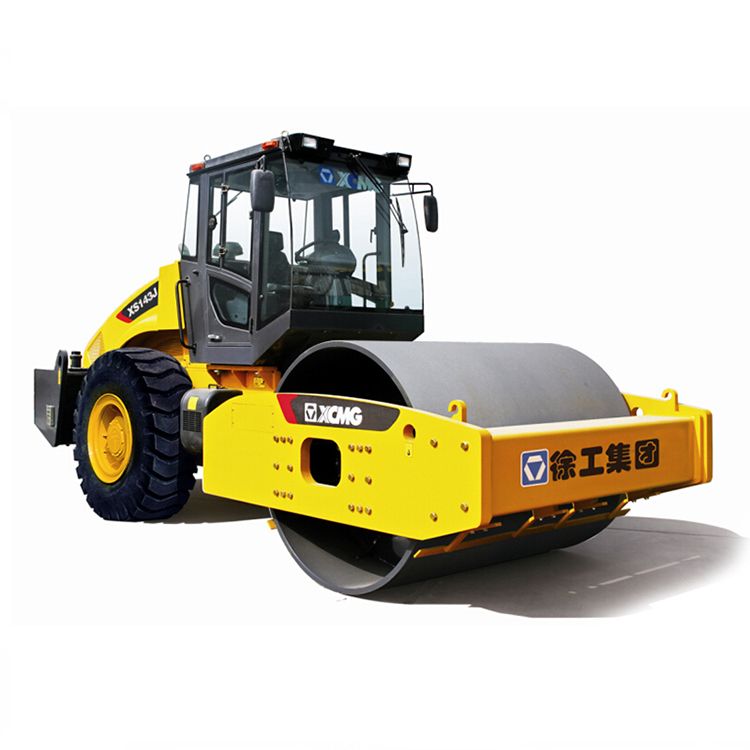

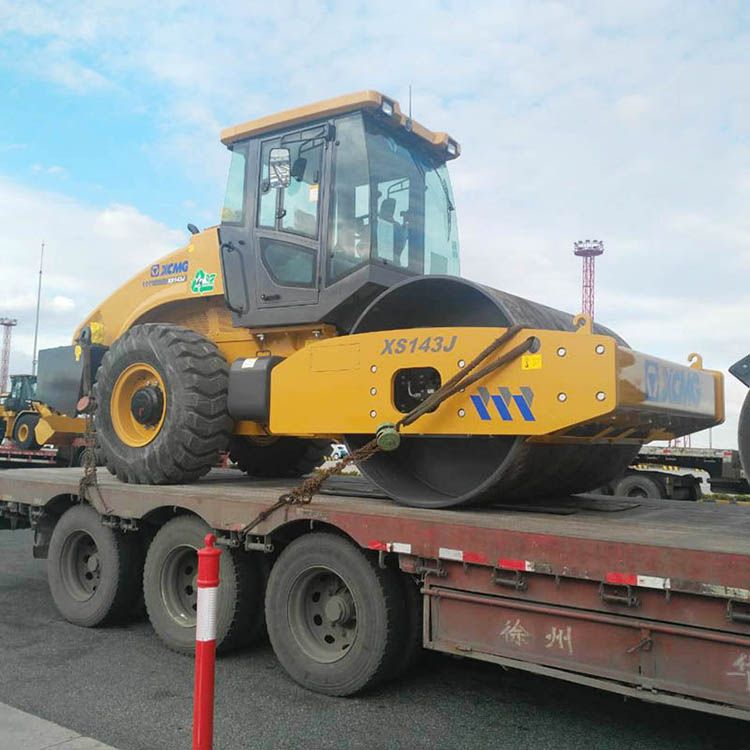

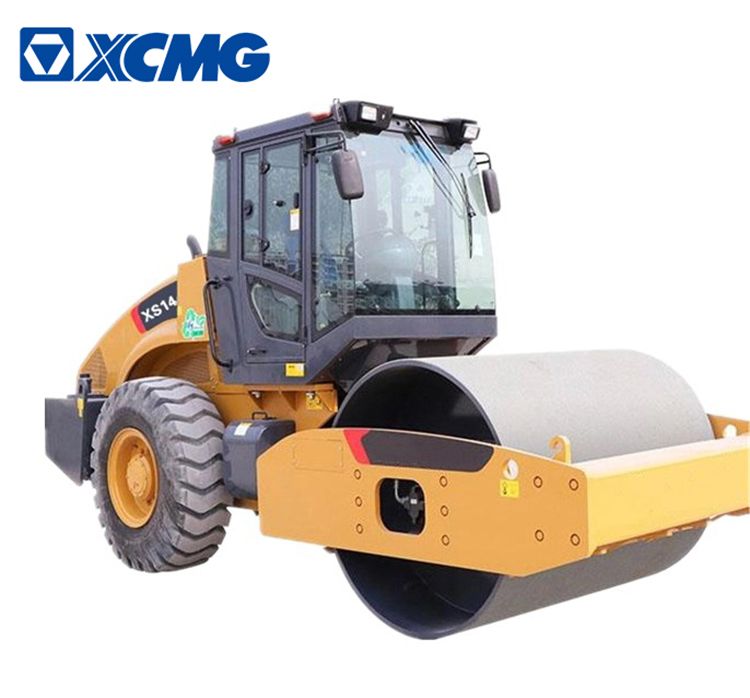

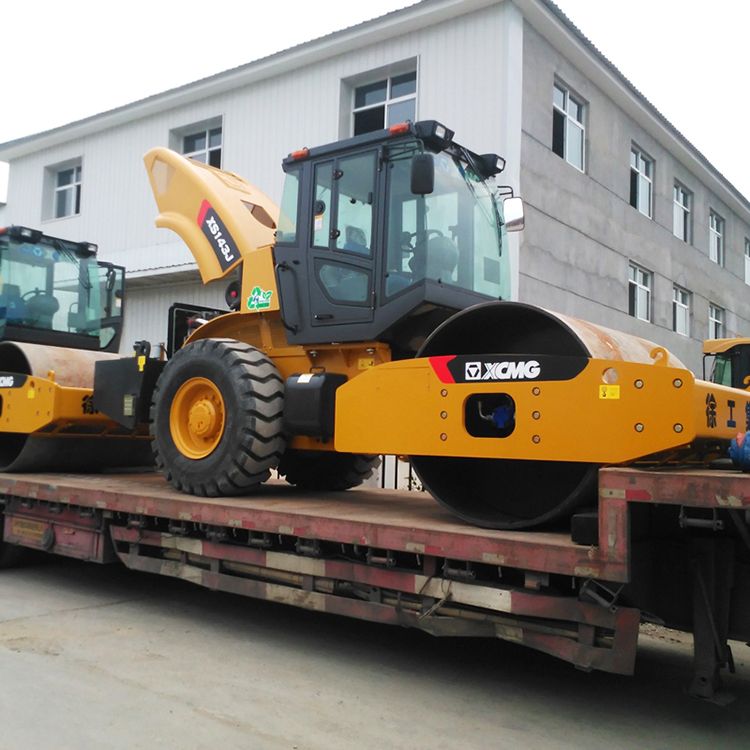

XCMG 14ton soil compactor road roller vibratory XS143J road roller.
XCMG XS143J Single drum vibratory roller has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc. and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects.
It is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.

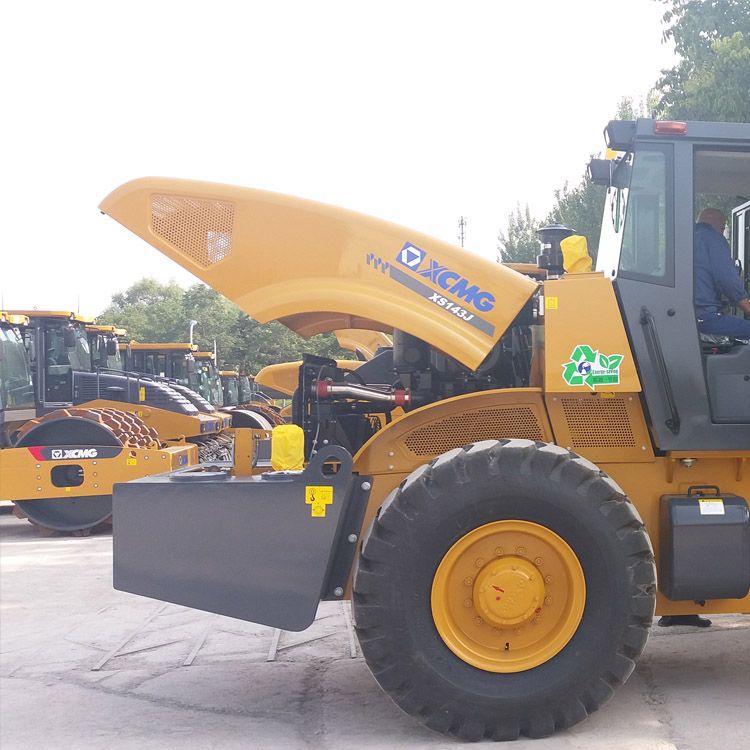

1. Use the H-series, water- cooling, four cylinder four-stroke, direct injection turbo charged and air-air intercooling low-speed diesel engine. This kind of diesel engine has a large power reserve and has the function of energy saving and noise reduction.
2. Rear drum hydraulic drive, adopt closed hydraulic drive system composed of variable displacement piston pump and piston motor to ensure better drive performance and gradeability.
3. Main clutch uses the heavy-duty special clutch which is the dry type normally combined friction clutch with a reliable performance and good maintainability.
4. Double frequency and double amplitude can meet the requirements of different working conditions; Guarantee the demand of vibration parameter and reliability of vibration system.
5. Optimized vibration drum structure and vibration parameters to guarantee smoother compaction surface and higher compaction efficiency.
Distributed mass of driving wheel
Distributed mass of vibrating drum
Static linear load
Engine Rated speed
Engine Rated power
Pressure of vibration system
Pressure of steering system
