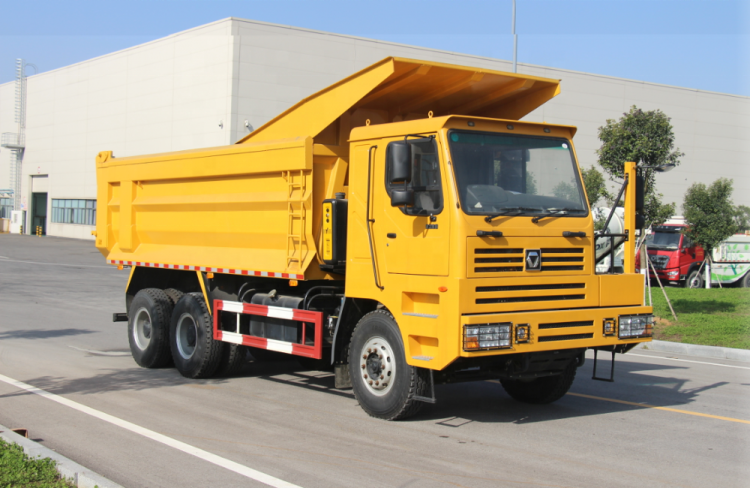

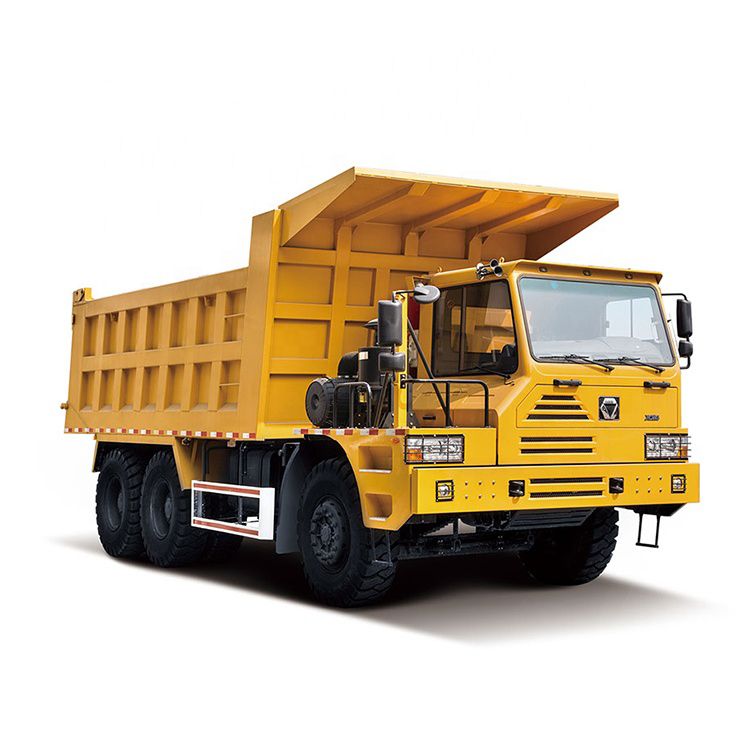

XCMG 6x4 50 ton NXG5550DT Off-road Dump Truck.



* According to each of the engine torque characteristic curve, perfectly match the different types of Fast manual gearbox, Allision automatic gearbox, to protect the most energy rationalization output, the vehicle has an excellent starting ability, climbing ability.



* Optimized arrangement of the traditional system architecture, reducing the loss of energy transfer process to ensure the kinetic energy efficient, rapid transmission.



* Using the unique steering and steering follower, the steering mechanism. Steering light, the failure rate lower.



* Dual-circuit brake system equipped with high pressure geography accumulator volume increases, the brake pressure increasing 25% to 1 Mpa, shorten braking distance.

Dimensions(mm)

Overall size (length×width×height)

8860*3275*3740

Cargo body size (length×width×height)

5800×2400×1650

Wheelbase

4000+1400

Cargo thickness

Bottom 16mm ,sideboard 12mm

Weight(kg)

Kerb mass

17000

Rated loading capacity

30000

Gross vehicle weight

47000

Performance



Max. travel speed

65km/h

Min. turning Radius

m

Max. gradeability

33%

Engine

Model

WD10.340E32

Rated output power

340HP

Displacement

9762ml

Front axle

9.5T

Rear axle

16T

Breaks



Service brake:

dual circuit compressed air brake

Parking brake

spring energy operating on rear wheels

Tyers

12.00R20

Electric System

Operating voltage

24V

Alternator

70A/28V

Batteries

6-QAW-180DMF

Fuel tank

Capacity

300 L
